Description
- General-purpose use
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
Specifications
- Designation: N
- Finish: Brt
- Shank Form: A
- Type: Straight Flute
- Thread Form: MF
- Lead: Intermediate
- Material: HSS
- Max Cut Depth: 1xD
- x: als
- Standard: ISO529
- Nut Tolerance: ISO 2 / 6H

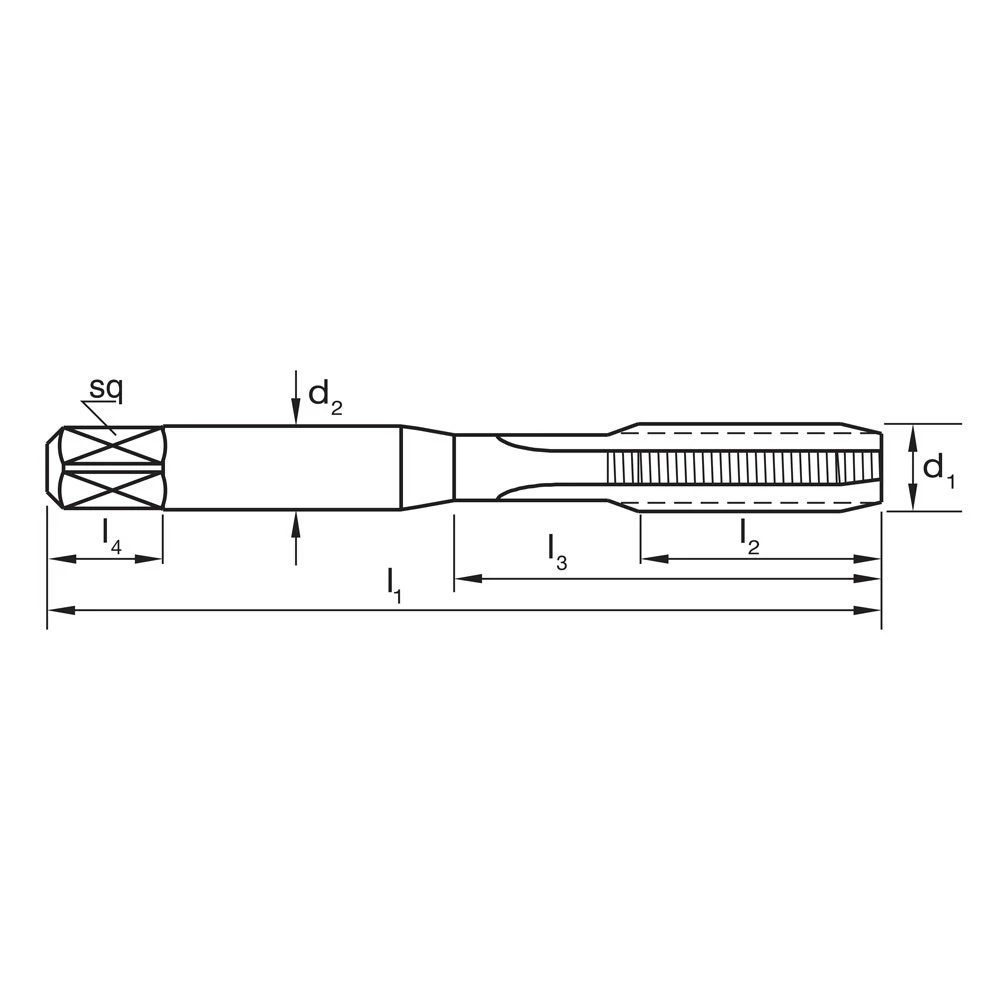

- Size:
- d1: MF10
- 11: 80
- l2: 24
- l3: 3
- d2: 10
- sq: 8
- l4: 11
- z: 4
- Drill Ø: 9
- Pitch: 1
| Part No | T4021005 |
|---|---|
| Barcode | 9311963018058 |
| Brand | Sutton |
| Net Weight (kg) | 0.045 |
| Product Length (mm) | 97 |
| Product Width (mm) | 18 |
| Product Height (mm) | 16 |
